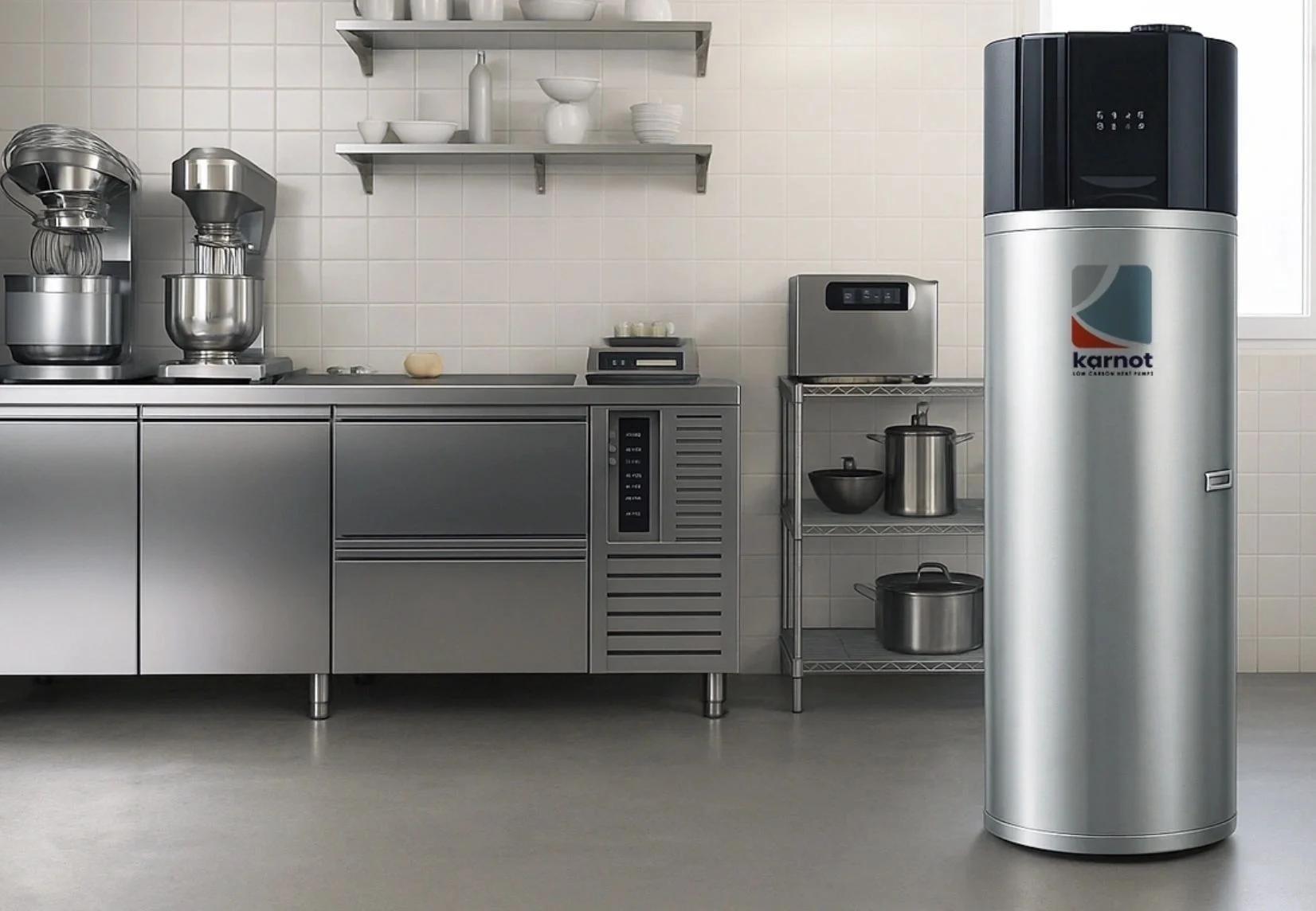

AquaHERO 200L
All-in-One R290 Heat Pump Water Heater
Revolutionary all-in-one heat pump water heater featuring natural R290 refrigerant and advanced DC inverter technology. The perfect solution for split heating systems — dedicated hot water production independent from space heating, enabling simultaneous operation, faster installations, and optimal efficiency for both systems.
Split System Advantages
The smarter way to heat water and your home — independently optimised for maximum efficiency and convenience.
Simultaneous Operation
Heat your home and water at the same time. No more waiting for hot water recovery while your house gets cold.
Faster Installation
Simple 13A plug connection. No complex piping to cylinder. Install hot water first, then space heating — keeping customers happy.
Right-Sized Systems
No oversizing heat pumps for hot water demand. Each system optimised for its specific task = better efficiency.
Lower Total Cost
Smaller space heating heat pump + dedicated water heater = lower overall system cost than an oversized single unit.
Perfect for Retrofits
No MCS required for water-only systems. Ideal for quick replacements and distress purchases.
Indoor Heat Recovery
Extract heat from indoor air before it leaks outside. Higher COP from 21°C source vs 5°C outdoor air.
Heating Performance
| Rated Heating Capacity | 2.2 kW |
| Rated Power Input | 0.55 kW |
| COP (Coefficient of Performance) | 4.0 |
| Rated Water Yield | 46 L/hour |
| Water Temperature Setting Range | 35–70 °C |
| Max Water Outlet Temp (Heat Pump) | 65 °C |
| Max Outlet Temp (with E-Heater) | 70 °C |
| Outdoor Air Temperature Range | -7 °C to 43 °C |
| Warm-up Time (14/13°C climate) | 5.1 hours |
Heating Capacity at Different Ambient Temperatures
| At -7°C Ambient | 1.24 kW |
| At +2°C Ambient | 1.56 kW |
| At +7°C Ambient | 1.89 kW |
| At +20°C Ambient (Rated) | 2.20 kW |
| At +43°C Ambient | 2.82 kW |
Electrical Specifications
| Power Supply | 220–240V / 50Hz / Single Phase |
| Max Running Current | 8.40 A |
| Electric Backup Heater | 1.5 kW |
| Sound Power Level | 54 dB(A) |
| Control Method | Wire Controller (CHICO) |
Technical Specifications
| Refrigerant / Charge | R290 (Propane) / 150g |
| Global Warming Potential (GWP) | 3 (Natural Refrigerant) |
| Compressor Type | Rotary DC Inverter |
| Condenser | Microchannel Heat Exchanger |
| Evaporator | Hydrophilic Aluminium Fin |
| Expansion Valve | Electronic |
| Fan Type | DC Fan |
| 4-Way Valve | SANHUA |
Water Tank & Pressure
| Storage Tank Volume | 200 L |
| Tank Type | Enamel Inner Liner |
| Tank Quality Test | 250,000 pulse cycles @ 0.85 MPa |
| Pressure Test | 1.7 MPa for 15 min (×2) |
| Rated Water Pressure | 0.7 MPa |
| Max Water Operating Pressure | 1.0 MPa |
| Low / High Max Allowable Pressure | 1.0 / 3.2 MPa |
Dimensions & Weight
| Diameter × Height | Ø570 × 1810 mm |
| Installation Clearance | 600mm all sides, 2000mm top |
| Net Weight | 99.5 kg (approx) |
| Packaging | Corrugated Board / Plywood Case |
Safety Features
| High Pressure Switch | 3.0 / 3.4 MPa |
| Low Pressure Switch | 0.05 / 0.15 MPa |
| Pressure Release Valve | Included |
| Temperature & Pressure Relief | Included |
| Y-Shaped Filter | Included |
Installation Requirements
| Room Ventilation | 2 × 600mm diameter ducts (intake/exhaust) |
| Water Connections | Cold inlet, hot outlet, PRV, tempering valve |
| Electrical Connection | 230V 13A standard plug |
| Condensate Outlet | Required (drain to waste) |
| Installation Location | Indoor / garage / utility room |
Notes: (1) Rated capacity, power input and COP based on testing conditions: ambient 20°C, water heated from 9°C to 55°C. (2) Noise tested per EN 12102 with water at 55°C. (3) Start water temperature 10°C, terminate 70°C for performance data. Specifications subject to change without notice.
Ready to Order the AquaHERO 200L?
Available for MCS installers with next-day UK delivery. Also available for Philippines and ASEAN markets.
