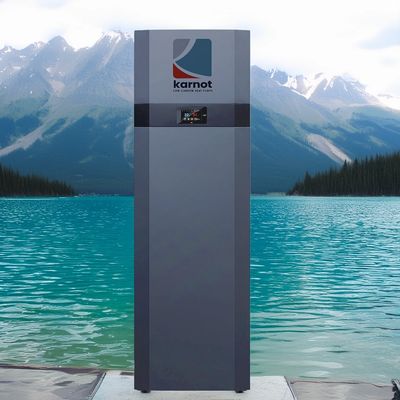

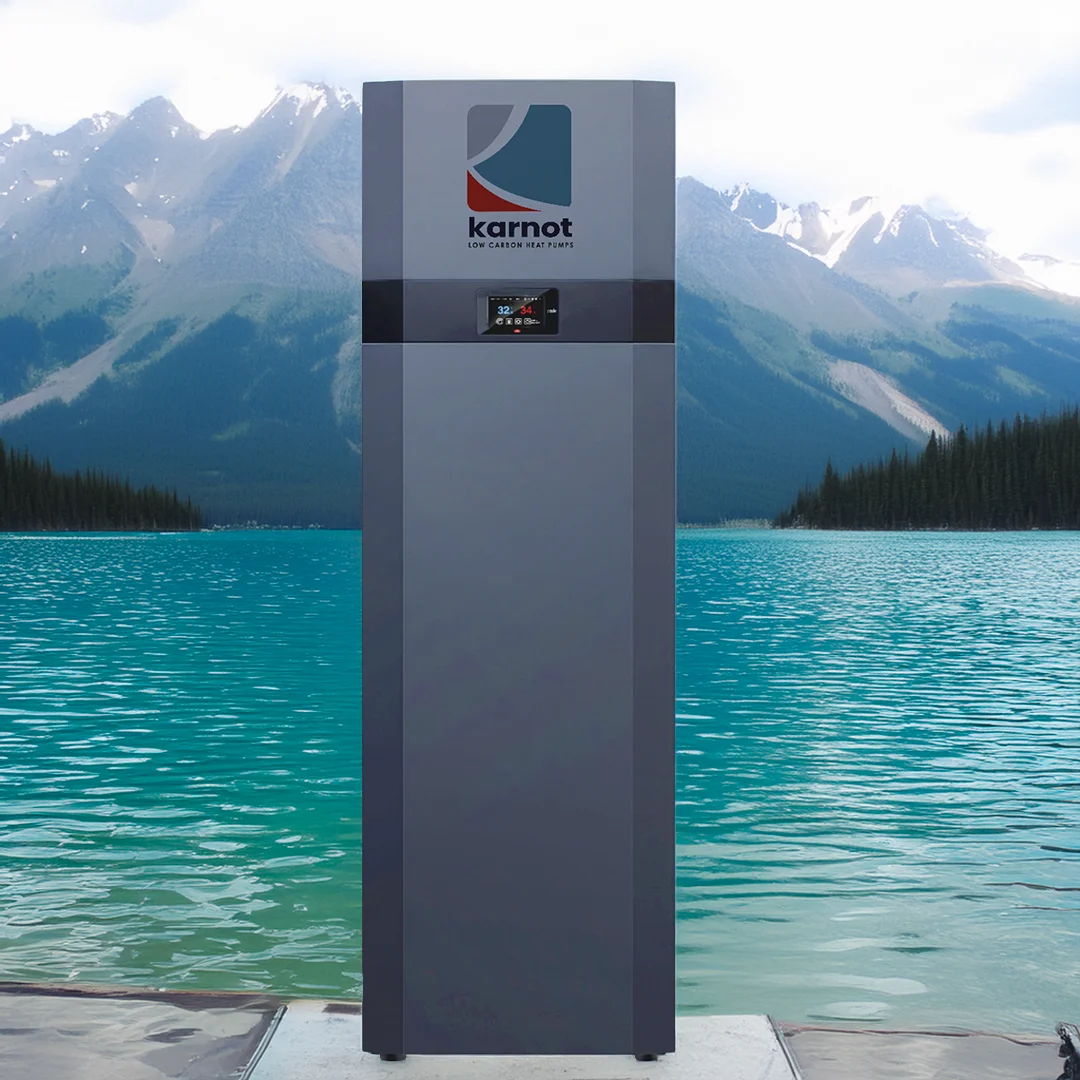

Karnot iHEAT Hydronic Tank All-in-One Thermal Core
Model: CGH06HR150
This multifunctional water tank is the intelligent hub of the Karnot iHEAT system. It integrates all essential hydraulic components into a single, compact unit, saving over 50% of installation time, reducing points of failure, and saving valuable plant room space.
Key Features & Advantages
Engineered for simplicity, reliability, and performance — the iHEAT Hydronic Tank streamlines your installation while delivering superior thermal management.
High Functional Integration
Combines a 150L hot water tank, 60L buffer tank, expansion tank, and 3-way valve. Includes advanced logic for solar heating and return water control.
Dual Temperature Zone Control
Supports precise control of two separate temperature zones (e.g., floor heating and radiators), ensuring optimal comfort without extra hardware.
Simplified Installation
A segmented design with highly integrated circuit boards and terminal accessories dramatically reduces installation time by over 50%, reducing complexity and potential errors.
Triple Safety Protection
Features dual over-temperature protection, a safety pressure relief valve, and automatic pressure reset functions for stable, reliable operation.
Technical Specifications
Comprehensive specifications for system design and installation planning.
Tank Capacities
| Hot Water Tank Volume | 150 Litres |
| Buffer Water Tank Volume | 60 Litres |
| Expansion Tank Volume | 5 Litres |
| Max. Water Temperature | 75°C |
Integrated Components
| Integrated Electric Heater | 3 kW |
| Controller Brand | CAREL |
| 3-Way Valve | DN25 |
| Heat Exchange Coil | DN32 × 15m (SUS304) |
Electrical & Physical
| Power Supply | 380-420V 2N~ or 220-240V~ |
| Dimensions (W × D × H) | 585 × 630 × 1865 mm |
| Cabinet Material | Galvanized Plate |
System Compatibility
Designed for seamless integration with the Karnot iHEAT outdoor unit range.
Compatible Outdoor Units
This hydronic tank integrates seamlessly with the following Karnot iHEAT outdoor units: CGK-030V4P, CGK-040V4P, CGK-050V4P, and CGK-060V4P.
Disclaimer: The information in this document is for reference only. Due to continuous improvement, specifications may be subject to change. Please refer to the nameplate on the machine for final details.
