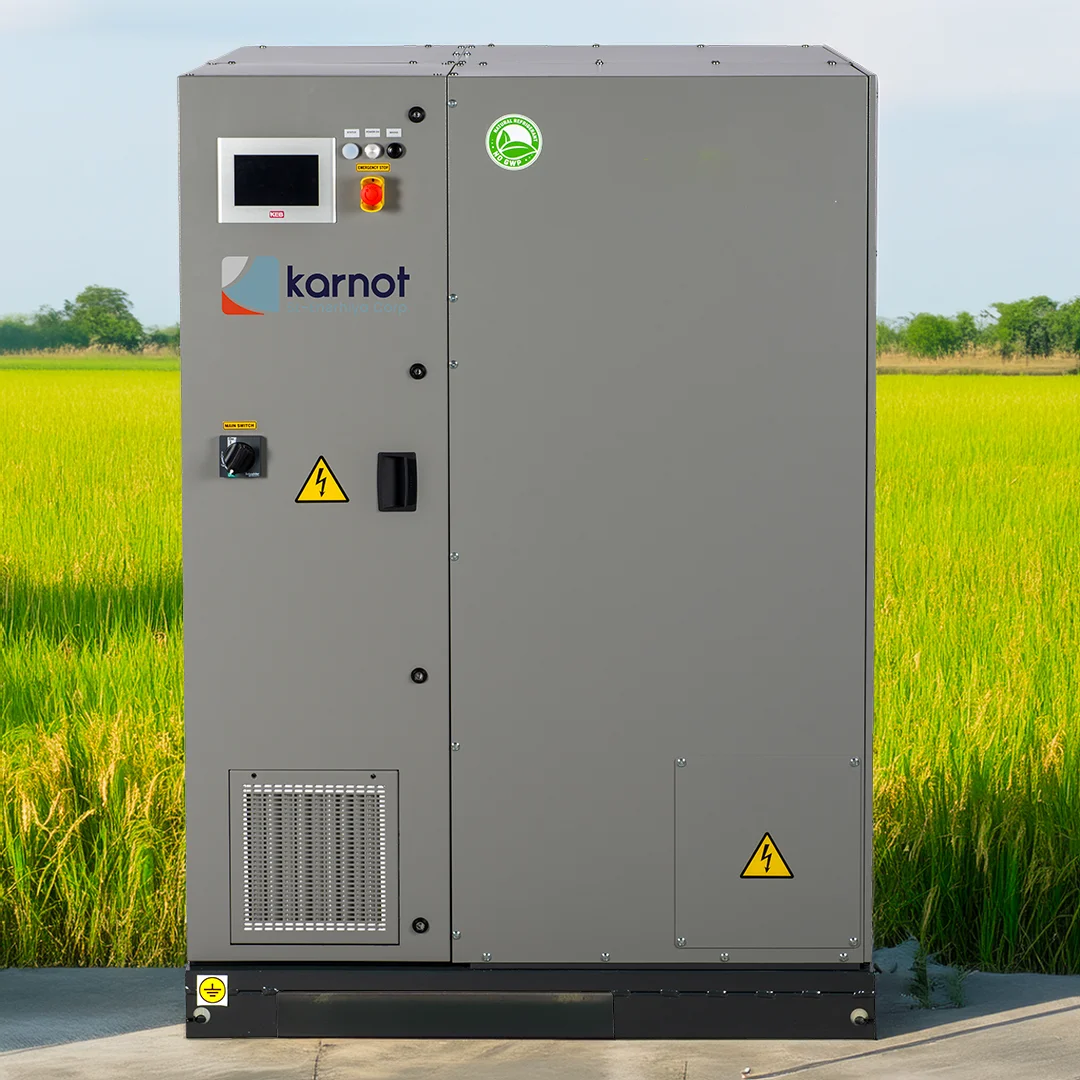

iCRYO 10
10kW Air-Cycle Ultra-Low Temperature CryoChiller
The Karnot iCRYO 10 utilises revolutionary air-cycle technology for ultra-low temperature applications from -40°C to -110°C. Using only natural air (R729) as the refrigerant, this system delivers zero GWP, zero ODP, and completely oil-free operation for pharmaceutical, semiconductor, and research applications.
Key Features at a Glance
Ultra-Low Temperatures
Operates from -40°C to -110°C with stable, reliable performance for the most demanding cryogenic applications.
Natural Air Refrigerant
Uses only R729 (air) as refrigerant — zero GWP, zero ODP, zero TFA. Completely natural and free.
100% Oil-Free
Turbo-compressor design eliminates oil contamination risks and reduces maintenance requirements significantly.
Rapid Auto-Restart
Automatically restores all parameters within 30 seconds after power interruption for continuous operation.
Variable Load Operation
Partial load capability ensures high energy efficiency and flexible response to specific cooling demands.
Snow Trap Protection
Integrated humidity extraction prevents frost buildup, eliminating energy-consuming defrost cycles.
Ideal Applications
The iCRYO 10 is engineered for advanced industrial and research applications requiring stable ultra-low temperatures.
Semiconductor Testing
Precise temperature control for device performance evaluation and dry etching processes requiring extreme cold.
Pharmaceutical Freeze-Drying
Lyophilisation of vaccines, antibiotics, and biologics with stable, contamination-free temperature control.
Chemical Process Control
Precise reaction temperature management for exothermic processes and high-purity chemical synthesis.
Biological Sample Storage
Freeze chambers for long-term preservation of biological materials, tissue samples, and research specimens.
Space Equipment Testing
Simulating extreme space environment conditions for materials testing and component qualification.
Cryotherapy Applications
Medical and sports recovery treatments requiring controlled exposure to ultra-low temperature air.
Performance Characteristics
Cooling Capacity & Power Consumption vs. Temperature
Performance Specifications
| Temperature Range | -40°C to -110°C |
| Cooling Capacity @ -40°C | 5.65 kW |
| Cooling Capacity @ -70°C | 4.37 kW |
| Cooling Capacity @ -110°C | 2.49 kW |
| Air Supply to Chamber | 250 – 600 kg/h |
Technical Specifications
| Refrigerant | R729 (Natural Air) |
| Compressor Type | Karnot Turbo-Compressor (Water-Cooled) |
| Rated Motor Power | 10.5 kW |
| Power Supply | 3 PE+N, 400V, 50Hz |
| Maximum Current | 63 A |
| Recommended Breaker | 80 A |
| Sound Pressure Level | 70 dBA @ 1m (Maximum) |
Dimensions & Weight
| Dimensions (L×W×H) | 1030 × 1330 × 1790 mm |
| Net Weight | 800 kg (± 50 kg) |
| Cabinet Material | Industrial Grade Steel with Powder Coating |
Advanced Air-Cycle Technology
Open-Cycle Design
The system operates on the principle of an open-air cycle: air passes through an integrated snow trap, is cooled by the turbo module, and is then delivered to the client's chamber at the specified temperature. This ensures reliable and stable performance even at extremely low temperatures.
Zero Environmental Impact
By using natural air (R729) as the refrigerant, the iCRYO 10 achieves zero Global Warming Potential (GWP), zero Ozone Depletion Potential (ODP), and produces no TFA (trifluoroacetic acid). Air is free, abundant, and requires no specialised handling or disposal.
Oil-Free Turbo-Compressor
The advanced turbo-compressor design operates completely oil-free, eliminating contamination risks critical for pharmaceutical, semiconductor, and food applications. This also dramatically reduces maintenance costs and extends component lifespan.
Snow Catcher System
Humidity Extraction Device (HED)
At ultra-low temperatures, moisture in the air instantly converts to snow. The integrated Snow Catcher — a Humidity Extraction Device — prevents frost buildup on products and equipment, eliminating the need for energy-consuming defrost cycles.
Continuous Operation
Unlike traditional cryogenic systems that require periodic defrosting (causing temperature fluctuations and product quality concerns), the iCRYO 10 operates continuously without interruption, maintaining stable temperatures and ensuring consistent process conditions.
Control & Safety Features
Intelligent Load Management
Partial load operation capability ensures high energy efficiency by matching cooling output to actual demand, reducing unnecessary power consumption during low-demand periods.
Rapid Recovery
In the event of power interruption, the system automatically restarts and restores all operational parameters within 30 seconds, minimising disruption to critical processes and protecting sensitive materials.

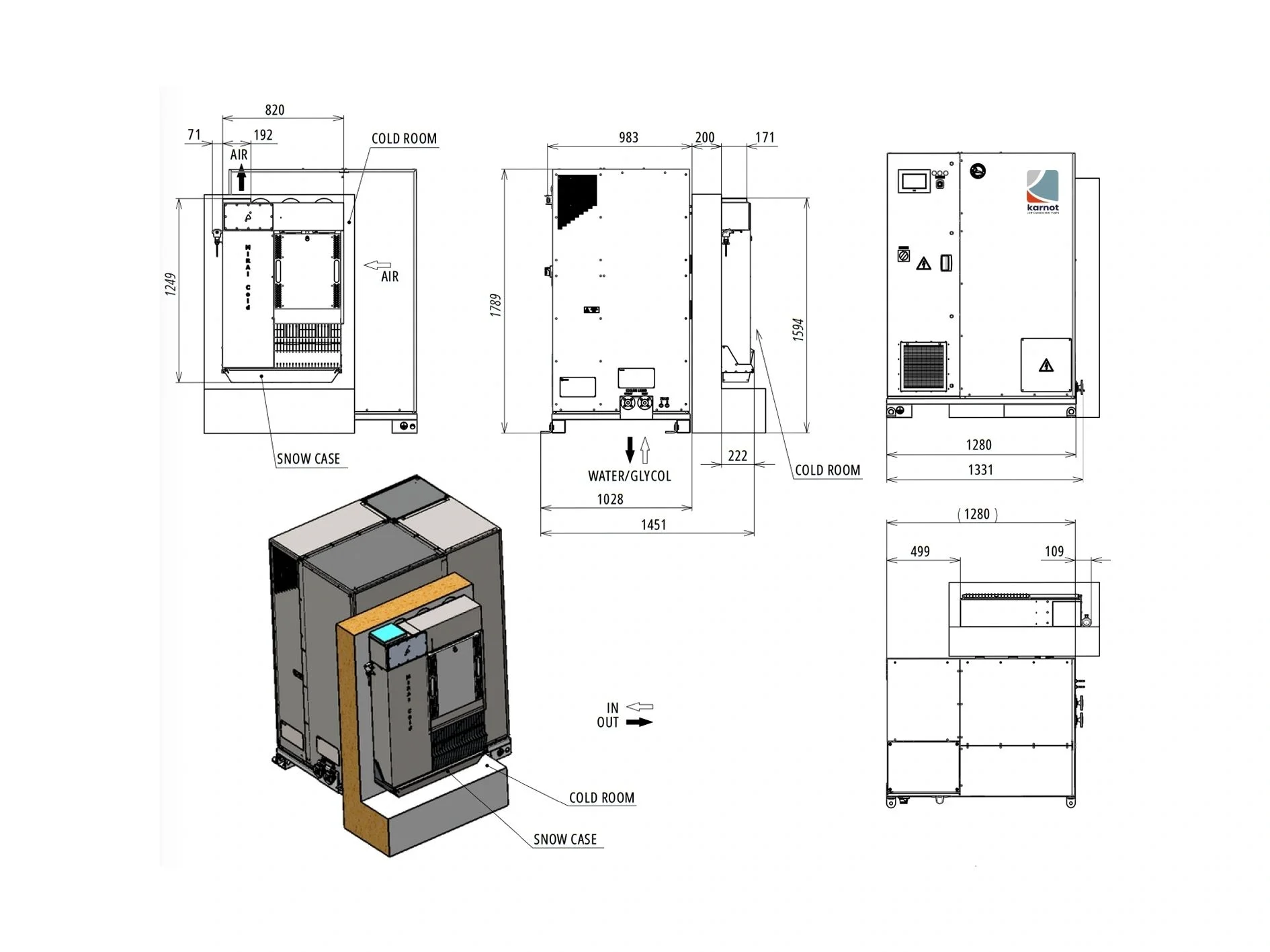

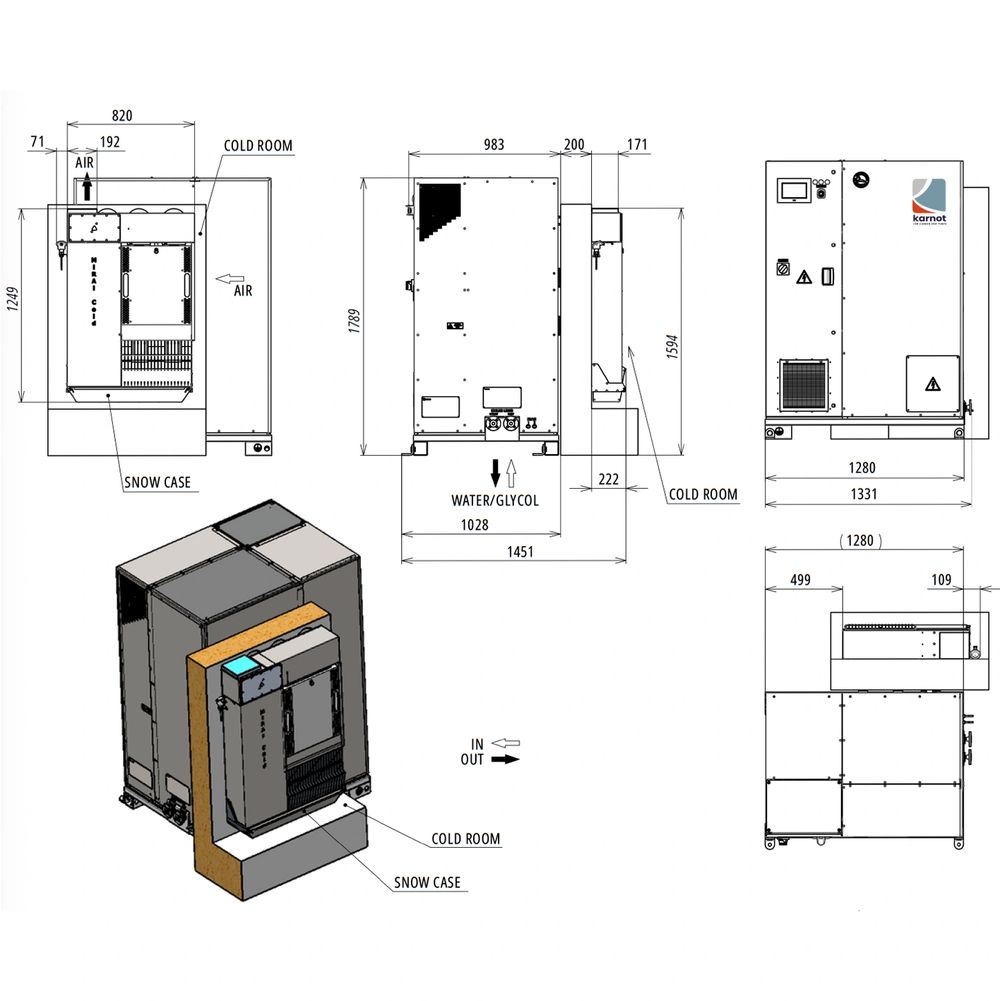

Technical Drawing
